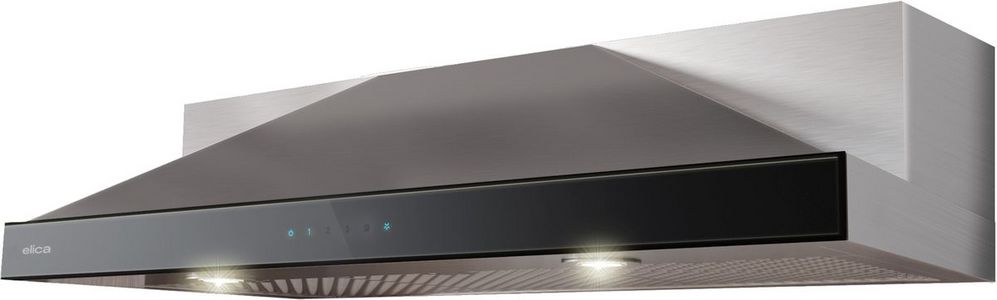

Elica Techne Series Modena 36" Stainless Steel with Black Glass Under Cabinet Range Hood

Elica

Model #:

EMD536S3

Model #: EMD536S3
460676
Elica
US$99,999.00

At a Glance

Product Dimensions 9.75"h x 36"w x 19.63"d

Modena offers a classic designer chimney appearance for under-cabinet installations, with a striking 9" high pyramid shape. Modena also provides high-end features not commonly found in under-cabinet hoods, including 520 CFM blower, LED dimmable lighting, stainless steel microhole filters and easy to use glass capacitive touch controls that deliver convenience and safety. Available in 30" or 36" width, and designed for standard ducted installation, Modena can also be installed as a recirculating system using the kit available as an accessory. For design versatility to suit almost any kitchen.Read More

Call for Best Price

Related items:

Get to know this product.

Product Overview

Product Overview

Hush system - An exclusive sound-deadening technology that effectively reduces sound levels by over 35%

CFM reduction system - Enables users to reduce directly the maximum blower CFM to meet local code requirements.

Led light - An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.

Dim light - With this feature, you can adjust the lighting of your hood: bright light or dim light, as you prefer.

Touch controls - Multifunction electronic touch control behind sleek black glass illuminates red when activated.

Useful Documents
Specification Sheet
User Guide
Specifications

General Specs

Width (in.)36
Height (in.)9.75
Duct Size (in.)10" x 3.25" Rectangular
Depth (in.)19.63
CollectionTechne Series Modena
ColorStainless Steel
Manufacturer Warranty3 Year Parts & Labor
Color Finish NameStainless Steel with Black Glass
Range Hood TypeUnder Cabinet
ADA CompliantNo
ENERGY STAR CertifiedNo
Outdoor ApprovedNo
Appliance Fit Width (in.)36
Product Weight (lbs.)37.92
Smart CompatibleNo
Maximum CFM520
Bulb TypeLED
Grease Filter TypeStainless Steel
Filter Indicator LightNo
Sones Rating6.8
Fan Speed Options4
Vent LocationTop
Height Above Cooktop30
Ventilation DirectionHorizontal
Shipping Depth (in.)13.74
Shipping Width (in.)13.74
Shipping Height (in.)24.33
Height Above Cooktop Centimeter76.20
Voltage120
Amp3.8
Frequency60
Range Hood FeaturesCharcoal Filter, Light, Removable Grease Filter
Noise Level (Sones)Standard - (High)
Ventilation TypeDucted

Overview

Duct Transition3 1/4" x 10" with back draft damper (top and rear)
Installation TypeDucted or Recirculating with installation Kit (sold separately)
Product MaterialStainless Steel
